Factory-direct crushing, screening and material processing products for mining, quarrying and aggregate applications.
Confirm product specifications and quantities, then receive a quotation.
Confirm order details, payment terms, and the production schedule.
Produce your order and check product quality against agreed specifications.
Pack finished products securely and arrange shipment as agreed.

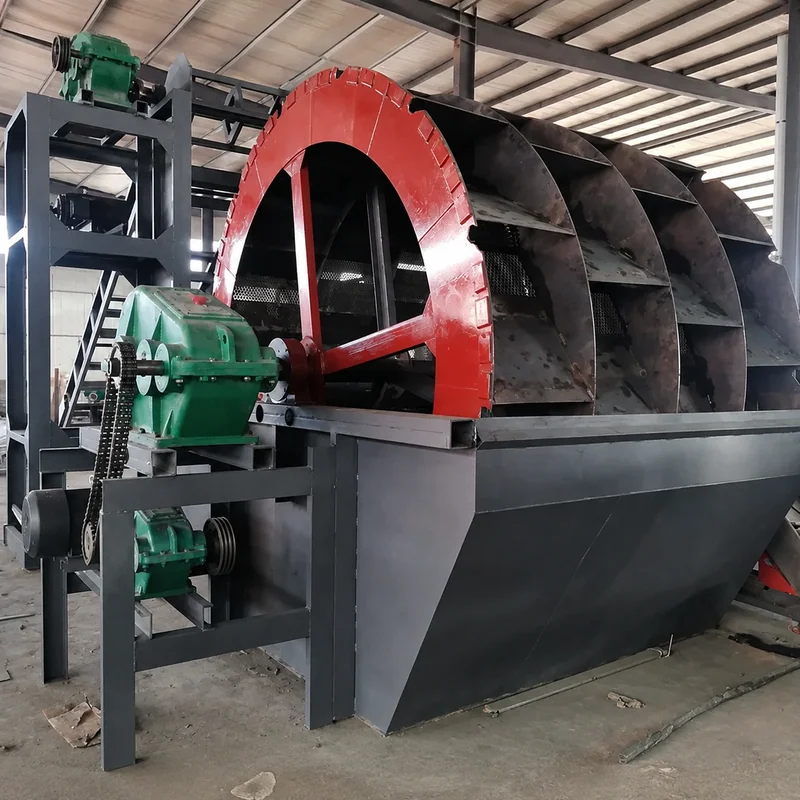

During operation, the motor drives the impeller at low speed through a V-belt and reducer. Sand and gravel enter the washing tank and are turned by the rotating impeller. As the material tumbles, particles rub against one another, loosening clay and other impurities on their surfaces. Water carries away lighter impurities through the overflow outlet. The washed sand and gravel are lifted by the impeller blades and discharged from the tank.
| model | impeller diameter (mm) | Feed particle size (mm) | production capacity (t/h) | Motor power (kw) |
|---|---|---|---|---|
| XSD2300 | Φ2300 | ≤10 | 20-30 | 4 |
| XSD2610 | Φ2600 | ≤10 | 30-80 | 7.5 |
| XSD2915 | Φ2900 | ≤10 | 60-120 | 11 |
| XSD3016 | Φ3000 | ≤10 | 80-160 | 15 |
| XSD3220 | Φ3200 | ≤10 | 130-220 | 22 |
| XSD3624 | Φ3600 | ≤10 | 160-300 | 22-30 |
Note: In case of any changes in technical data, the actual product shall prevail.
Please provide the material to be processed, feed size, required output size, capacity, quantity and project details. Your requirements will help us review the appropriate equipment.
