Factory-direct crushing, screening and material processing products for mining, quarrying and aggregate applications.
Confirm product specifications and quantities, then receive a quotation.
Confirm order details, payment terms, and the production schedule.
Produce your order and check product quality against agreed specifications.
Pack finished products securely and arrange shipment as agreed.

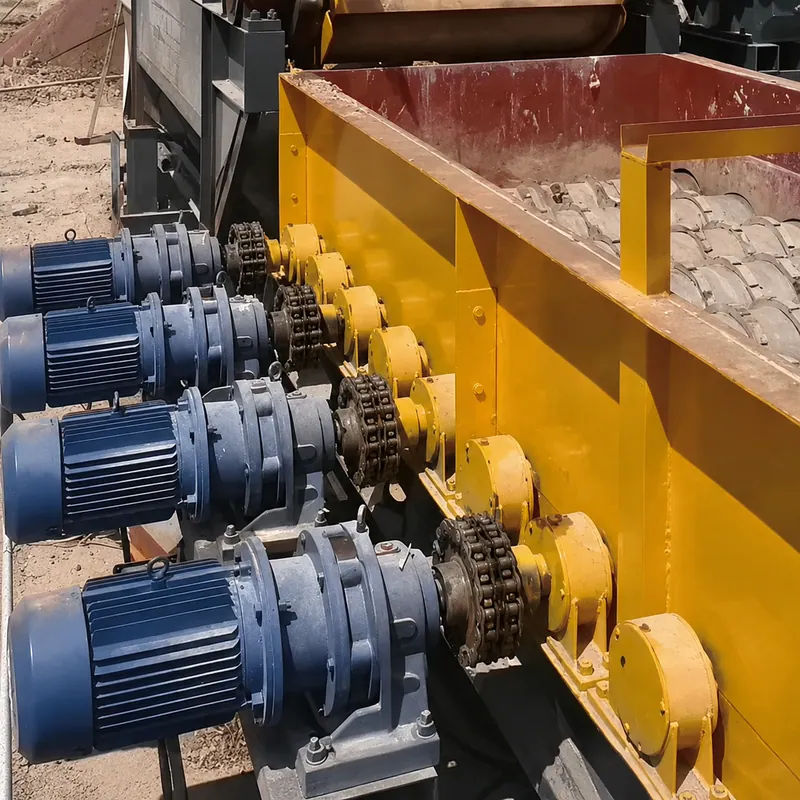

The mud and stone separator is suitable for separating various types of stone materials such as mud, sand, and ores, as well as various types of household waste, commercial and industrial waste, coal, decoration/construction waste, and viscous and wet materials. It can classify them according to different densities, sizes, and shapes, thereby reducing the load on subsequent sorting equipment. The wheelbase and disc determine the size of the screening, with a wide range of optional sizes, and the operating speed can be automatically adjusted according to material composition, humidity, and other factors. It greatly alleviates the shortage of resources and achieves a long-term mechanism for resource recycling and utilization.
| model | power (kw) | Shaft clearance (mm) | Number of axles (root) | Feed particle size (mm) | theoretical yield (t/h) | Reference weight (T) |
|---|---|---|---|---|---|---|
| DSM-0816 | 7.5-11 | 10-50 | 6-8 | ≤20 | 30-100 | 4 |
| DSM-1012 | 11-15 | 10-50 | 7-10 | ≤25 | 60-180 | 7 |
| DSM-1230 | 18.5-30 | 15-70 | 8-11 | ≤30 | 100-300 | 12 |
| DSM-1235 | 22-37 | 20-80 | 10-13 | ≤30 | 130-350 | 13 |
| DSM-1340 | 37-45 | 20-90 | 11-14 | ≤33 | 150-500 | 16 |
| DSM-1445 | 45-55 | 25-100 | 12-15 | ≤35 | 180-600 | 20 |
| DSM-1550 | 55-75 | 25-100 | 13-17 | ≤38 | 200-700 | 23 |
| DSM-1665 | 75-90 | 30-100 | 14-18 | ≤40 | 250-800 | 28 |
| DSM-1860 | 75-110 | 30-100 | 15-20 | ≤45 | 350-1000 | 35 |
Note: In case of any changes in technical data, the actual product shall prevail.
Please provide the material to be processed, feed size, required output size, capacity, quantity and project details. Your requirements will help us review the appropriate equipment.
