Factory-direct crushing, screening and material processing products for mining, quarrying and aggregate applications.
Confirm product specifications and quantities, then receive a quotation.
Confirm order details, payment terms, and the production schedule.
Produce your order and check product quality against agreed specifications.
Pack finished products securely and arrange shipment as agreed.

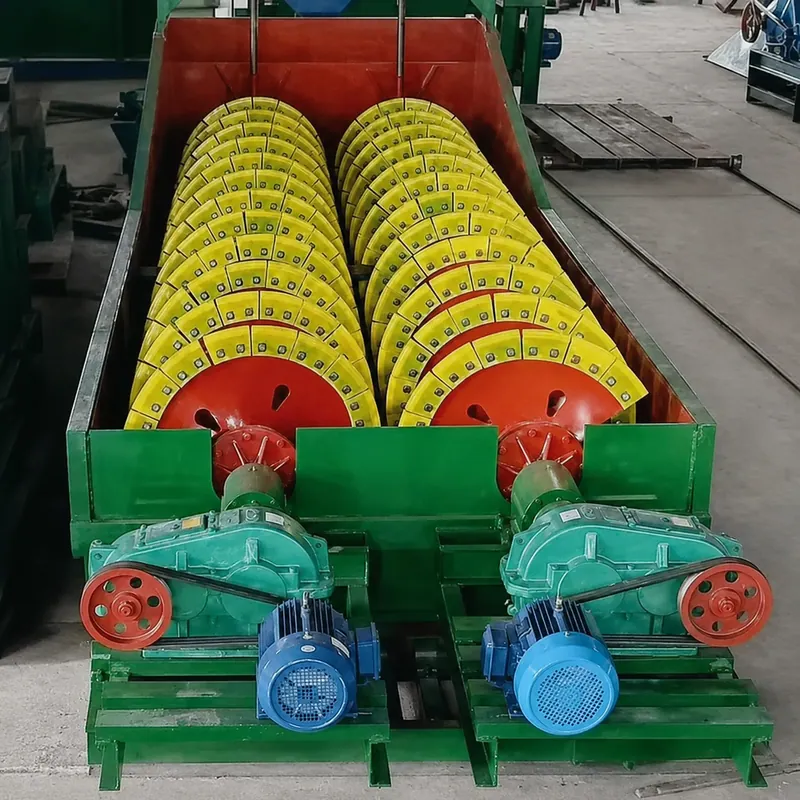

When the spiral sand washing machine is in operation, the motor drives the impeller to slowly rotate through a V-belt, reducer, and gear reducer. The sand and gravel enter the washing tank through a feeding groove, roll and grind each other under the drive of the impeller, remove impurities covering the surface of the sand and gravel, and destroy the water vapor layer covering the sand particles to facilitate dehydration; At the same time, water is added to form a strong water flow, which promptly carries away impurities and foreign objects with low specific gravity, and discharges them from the overflow outlet washing tank to complete the cleaning process. Clean sand and gravel are carried away by the blades, and finally the sand and gravel are poured into the discharge tank from the rotating impeller to complete the cleaning process.
| Specification Model | XS0745 | XS1054 | XS1254 | XS1554 |
|---|---|---|---|---|
| spiral diameter (mm) | 750 | 1000 | 1200 | 1500 |
| helical length (mm) | 4500 | 5400 | 5400 | 5400 |
| spiral speed (r/min) | 18 | 18 | 16 | 16 |
| processing capacity (t/h) | 30-40 | 40-60 | 60-80 | 80-100 |
| electromotor (kw) | 7.5 | 11 | 15 | 22 |
| Overall dimensions — long | 6.6 | 7.5 | 7.6 | 7.6 |
| Overall dimensions — wide | 0.8 | 1.25 | 1.44 | 1.85 |
| Overall dimensions — high | 1.4 | 2.2 | 2.2 | 2.2 |
| Specification Model | XS1500 | XS2000 | XS2400 | XS3000 |
|---|---|---|---|---|
| spiral diameter (mm) | 750*2 | 1000*2 | 1200*2 | 1500*2 |
| helical length (mm) | 4500 | 5400 | 5400 | 5400 |
| spiral speed (r/min) | 18 | 18 | 16 | 16 |
| processing capacity (t/h) | 60-80 | 80-120 | 120-160 | 160-200 |
| electromotor (kw) | 7.5*2 | 11*2 | 15*2 | 22*2 |
| Overall dimensions — long | 6.6 | 7.5 | 7.6 | 7.6 |
| Overall dimensions — wide | 1.75 | 3 | 3.2 | 3.7 |
| Overall dimensions — high | 1.4 | 2 | 2.2 | 2.2 |
Note: In case of any changes in technical data, the actual product shall prevail.
Please provide the material to be processed, feed size, required output size, capacity, quantity and project details. Your requirements will help us review the appropriate equipment.
