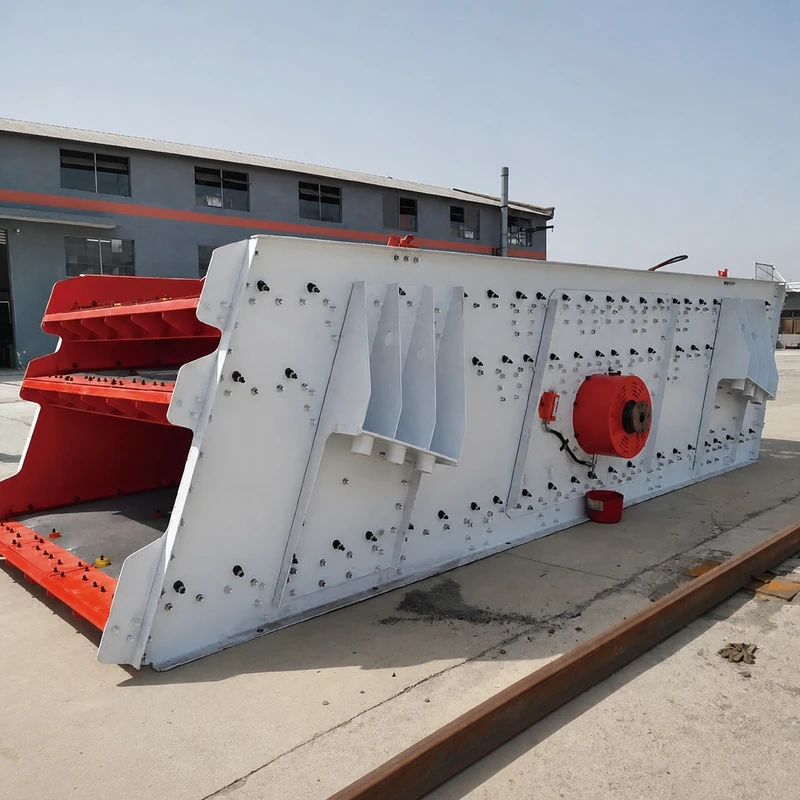

The circular vibrating screen performs circular motion and is a new type of multi-layer, high-efficiency vibrating screen. The circular vibrating screen adopts a cylindrical eccentric shaft exciter and a bias block to adjust the amplitude. The material screening line is long, and there are multiple screening specifications. It has the characteristics of reliable structure, strong excitation force, high screening efficiency, low vibration noise, durability, easy maintenance, and safe use. This vibrating screen is widely used in product grading in industries such as mining, building materials, transportation, energy, and chemical industry.
| model | Screen size (mm) | Number of screening layers | Maximum feed particle size (mm) | processing power (t/h) | Motor power (kw) | vibration frequency (r/min) | Dual amplitude (mm) |
|---|---|---|---|---|---|---|---|
| 2YZS-1237 | 3700×1200 | 2 | 300 | 25-120 | 11 | 870 | 5-9 |
| 3YZS-1237 | 3700×1200 | 3 | 300 | 25-120 | 11 | 870 | 5-9 |
| 2YZS-1548 | 4800×1500 | 2 | 300 | 30-275 | 15 | 870 | 5-9 |
| 3YZS-1548 | 4800×1500 | 3 | 300 | 30-275 | 15 | 870 | 5-9 |
| 4YZS-1548 | 4800×1500 | 4 | 300 | 30-275 | 15 | 870 | 5-9 |
| 2YZS-1848 | 4800×1800 | 2 | 350 | 56-330 | 18.5 | 870 | 5-9 |
| 3YZS-1848 | 4800×1800 | 3 | 350 | 56-330 | 18.5 | 870 | 5-9 |
| 4YZS-1848 | 4800×1800 | 4 | 350 | 56-330 | 18.5 | 870 | 5-9 |
| 2YZS-1860 | 6000×1800 | 2 | 350 | 65-586 | 22 | 870 | 5-9 |
| 3YZS-1860 | 6000×1800 | 3 | 350 | 65-586 | 22-30 | 870 | 5-9 |
| 4YZS-1860 | 6000×1800 | 4 | 350 | 65-586 | 22-30 | 870 | 5-9 |
| 2YZS-2160 | 6000×2100 | 2 | 350 | 81-720 | 37 | 730 | 5-9 |
| 3YZS-2160 | 6000×2100 | 3 | 350 | 81-720 | 30-37 | 730 | 5-9 |
| 4YZS-2160 | 6000×2100 | 4 | 350 | 81-720 | 30-37 | 730 | 5-9 |
| 2YZS-2460 | 6000×2400 | 2 | 350 | 100-810 | 37 | 770 | 5-9 |
| 3YZS-2460 | 6000×2400 | 3 | 350 | 100-810 | 37 | 770 | 5-9 |
| 4YZS-2460 | 6000×2400 | 4 | 350 | 100-810 | 45 | 770 | 5-9 |
| 2YZS-2870 | 7000×2800 | 2 | 350 | 120-900 | 22×2 | 620 | 5-9 |
| 3YZS-2870 | 7000×2800 | 3 | 350 | 120-900 | 22×2 | 620 | 5-9 |
| 2YZS-3072 | 7200×3000 | 2 | 350 | 120-900 | 22×2 | 620 | 5-9 |
| 3YZS-3072 | 7200×3000 | 3 | 350 | 120-900 | 22×2 | 620 | 5-9 |
Note: In case of any changes in technical data, the actual product shall prevail.
