Factory-direct crushing, screening and material processing products for mining, quarrying and aggregate applications.
Confirm product specifications and quantities, then receive a quotation.
Confirm order details, payment terms, and the production schedule.
Produce your order and check product quality against agreed specifications.
Pack finished products securely and arrange shipment as agreed.

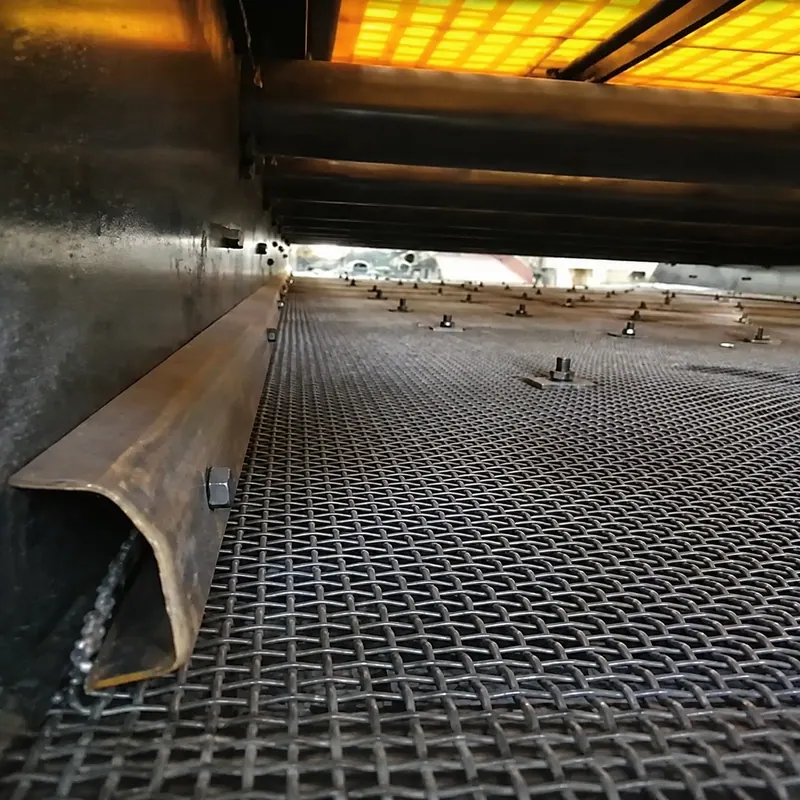

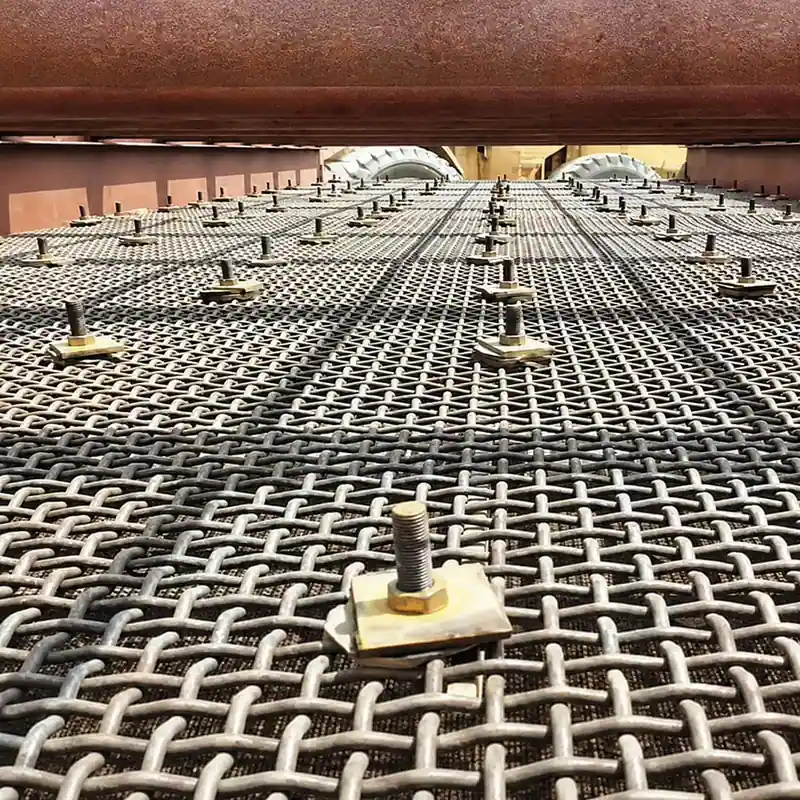

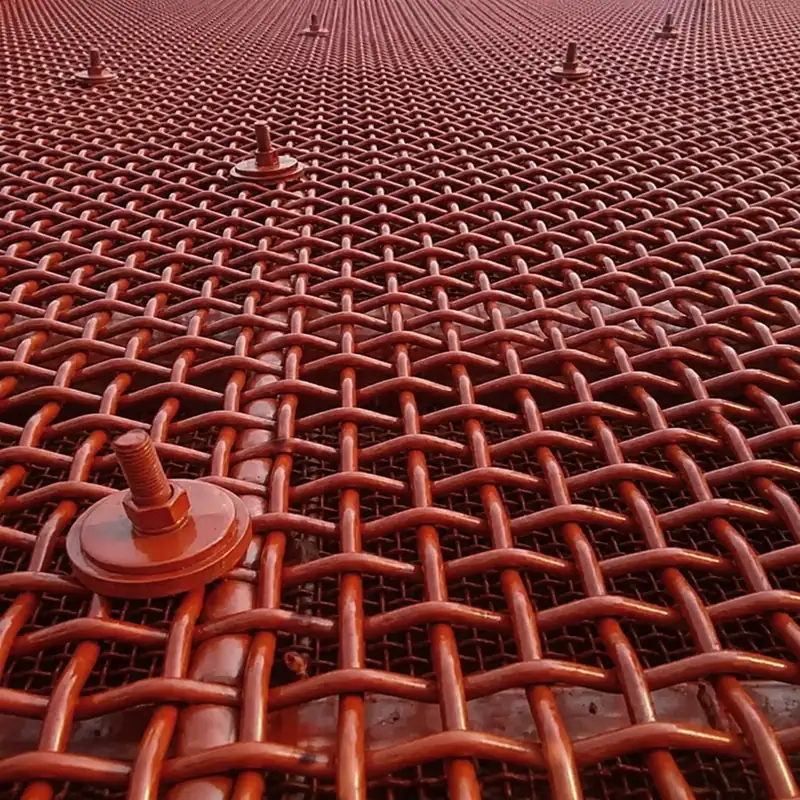

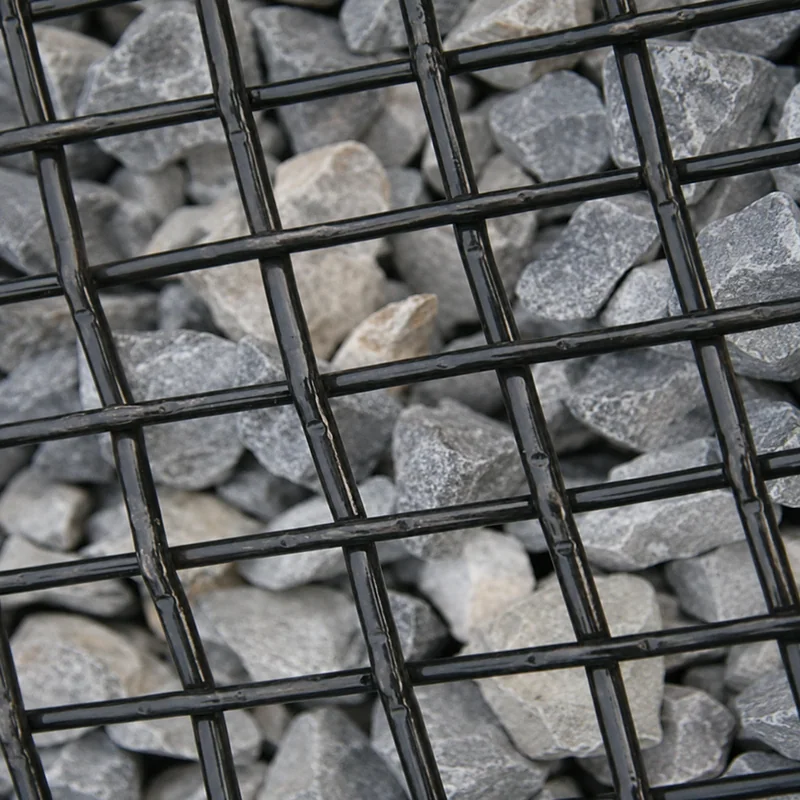

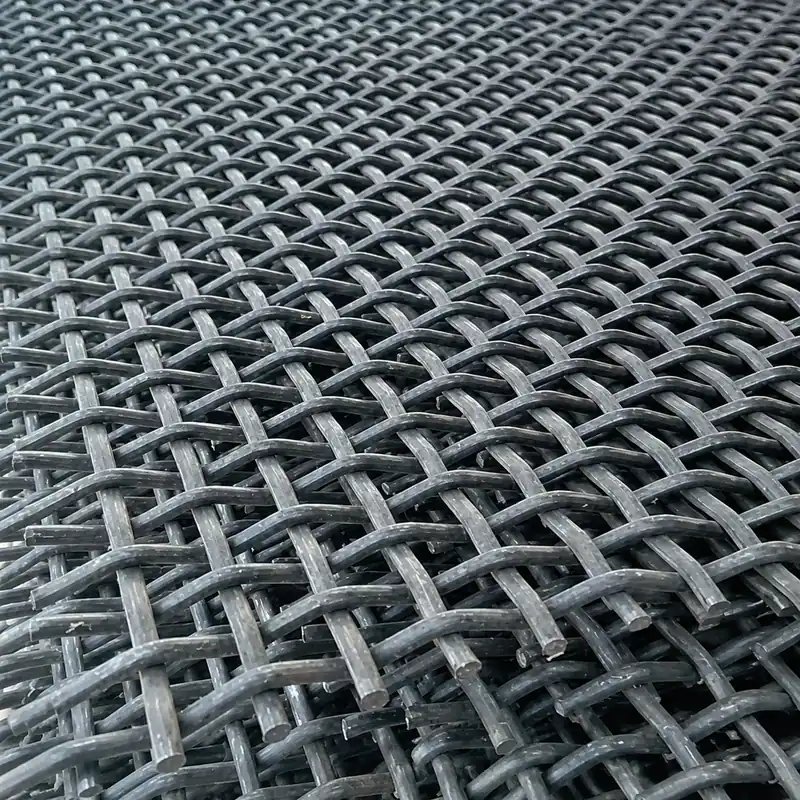

Manganese steel mesh is a metal mesh structure element used for screening and filtering, made of high manganese steel as raw material. Widely used in screening, filtering, dewatering, and desliming operations in multiple industries such as mining, coal, metallurgy, and chemical engineering. It has high strength, stiffness, load-bearing capacity, and wear resistance.
| Material | Wire diameter (mm) | Screen aperture (mm) / mesh count |
|---|---|---|
| 65Mn | 12 | 150, 100, 90, 85, 80, 75, 70, 65, 60 |
| 65Mn | 10 | 60, 55, 54, 53, 52, 51, 50, 48, 47, 46, 45, 44, 43, 42 |
| 65Mn | 9 | 45, 44, 43, 42, 41, 40, 39, 38, 37, 36, 35, 34, 33 |
| 65Mn | 8 | 40, 39, 38, 37, 36, 35, 34, 33, 32, 31, 30, 29, 28 |
| 65Mn | 7 | 31, 30, 29, 28, 27, 26, 25, 24 |
| 65Mn | 6 | 30, 29, 28, 27, 26, 25, 24, 23, 22, 21, 20, 19, 18 |
| 65Mn | 5 | 21, 20, 19, 18, 17, 16, 15 |
| 65Mn | 4.5 | 16, 15, 14, 13, 12, 11 |
| 65Mn | 4 | 13, 12, 11, 10, 9 |
| 65Mn | 3.5 | 10, 9, 8, 7 |
| 65Mn | 3 | 8, 7, 6, 5 |
| 65Mn | 2.5 | 6, 5, 4 |
| 65Mn | 2 | 5, 4, 3 |
| 65Mn | 1.5 | 2.5, 2, 1.5, 1 |
| Stainless steel wire | 1.5-0.1 | 10–300 mesh |
Note: The screen meshes listed above vary in specifications and price. All products supplied by our factory are sold at ex-factory prices. Prices fluctuate with prices in the national steel market.
Please provide the wire diameter, aperture, panel dimensions, edge or hook details, quantity and application. A drawing or sample photo will help us review your requirements.
